Ceiling Hanger VT-MSH

The VT-MSH is a vibration isolation hanger, designed for both top or side mounting. The spring isolator has a load range from 5-7 kg up to 20-30 kg with the stiffest spring and a natural frequency of 4-5 Hz. It can be used together with Vibratec click-on hangers and profiles for suspended ceilings, or as it is for hanging equipment such as speakers, pipes or ventilation.
Vibratecs own ceiling hanger with a spring isolator is available with five different springs with a load range from 5-7 kg up to 20-30 kg with the stiffest spring and a natural frequency of 4-5 Hz.Vibratecs own ceiling hanger with a spring isolator is available with five different springs with a load range from 5-7 kg up to 20-30 kg with the stiffest spring and a natural frequency of 4-5 Hz.Vibratecs own ceiling hanger with a spring isolator is available with five different springs with a load range from 5-7 kg up to 20-30 kg with the stiffest spring and a natural frequency of 4-5 Hz.Vibratecs own ceiling hanger with a spring isolator is available with five different springs with a load range from 5-7 kg up to 20-30 kg with the stiffest spring and a natural frequency of 4-5 Hz.

Product Characteristics

The washer on top of the spring isolator has an M6 threaded insert. Suspend equipment, beams, ceilling systems using for example threaded rods or eye bolts.

Note

For beam structures, back mounting of the hangers could reduce the total height of the system.

Product Applications

Perfect for suspending equipment:

  • Speakers
  • Pipes
  • Ventilation



Technical Specifications

Front view technical drawing of Vibratec's ceiling hanger VT-MSH. A spring isolator with a natural frequency between 4-5 Hz.Section A-A technical drawing of Vibratec's ceiling hanger VT-MSH. A spring isolator with a natural frequency between 4-5 Hz.

VT-MSH-technical-specificationceiling-hanger-vt-msh-technical-specification.xlsx

Sheet1

Type Load (kg) Spring rate (N/mm) Fn (Hz)
VT-MSH-S-1 5 - 7 6 4 - 5
VT-MSH-S-2 6 - 9 7.6
VT-MSH-S-3 9 - 13 10.7
VT-MSH-S-4 13 - 20 17.5
VT-MSH-S-5 20 - 30 27
VT-MSH-S-6 30 - 50 39.7

Downloads

  • Technical Data SheetInformation about the product in PDF format

Contact Us

Interested in Ceiling Hanger VT-MSH?

Feel free to contact us for more information

Related products

Impact damping gym floor tiles. They provide the necessary cushioning and shock absorption for performance and also reducing structure-borne noise. While also providing a durable and comfortable surface to exercise on.

Gym mat Everroll Crosstile

The Everroll Crosstile from REGUPOL is robust tile range for fitness centres. Quick to install, it also serves primarily to…

A hard-wearing, robust and durable flooring for your fitness centre

Gym mat Everroll

Our robust rolls of REGUPOL everroll classic are the ideal floors for fitness centres – with a wide range of…

Gym mat Sonusfit T 110 can be laid loosely on the bare slab or on the screed. This doesn’t only ensure easy installation, but also easy removability.

Gym mat Sonusfit T 110

Floor covering made of structure-borne sound insulating elastomers with springy and sports functional properties for use in gyms. This is…

The 12 mm thick impact sound insulating material with a profiled underside is our solution for modernisation in old buildings, in solid construction and solid timber construction (CLT).

Impact mat Comfort 12

The 12 mm thick impact sound insulating material with a profiled underside is our solution for modernisation in old buildings,…

This thin 5 mm impact sound insulating material is ideal for applications with limited installation heights.

Impact mat Comfort 5

This thin 5 mm impact sound insulating material is ideal for applications with limited installation heights. REGUPOL comfort 5 is…

Impact sound insulating mat with an extra smooth surface for homogenous vinyl flooring and other floor coverings.

Impact mat Sonus Multi 3

Impact sound insulating mat with an extra smooth surface for homogenous vinyl flooring and other floor coverings. The 3 mm…

Bonded Foam

The bonded PU-foam has excellent mechanical properties. This flexible foam mat with high density and good impact absorbing properties is…

An all-metal vibration isolation mount used for machinery or elastic suspension of exhaust pipes. Perfect tension and compression isolator.

All-Metal Mount VTCI-1500F

Vibratecs all-metal mount for use as an elastic fix point. A progressive tension and compression isolator with a natural frequency…

All-Metal Mount VTCI-3500F

Vibratec Cushion Isolator for use as elastic fix point. Isolator with equifrequency character; 15-20 Hz for the recommended load range.…

Image of Vibratec Cylindrical Dampers

Cylindrical Dampers

Cylindrical dampers are cost-effective and convenient items for damping vibrations from, for example, motors, generators, machinery, and other vibrating equipment.

Image of Vibratec Elastomer Mount DMS020

Elastomer Mount DMS 020

This elastomer mount is a rubber isolator for engine and machine suspension in land based and marine applications. Available in…

Image of Vibratec Elastomer Mount PC 270270

Elastomer Mount PC 270

Resilient elements in natural rubber (NR) or nitrile (NBR) in shorer hardness 45, 55 alt. 65 shore. Metal parts in…

Image of Vibratec Spring Isolator 7001. Inside is a spring that isolates vibrations. A steel wire cuchion surrounds the stud and acts as a movement limiter. Mounting light weight equipment on top of these isolators protects them from damage caused by vibrations.

Spring Isolator VT7001

Suspend very light weight sensitive equipment with our spring isolator 7001. A series of isolators with almost constant natural frequency…

Image of Vibratec Spring Isolator 7002. Inside is a spring that isolates vibrations. A steel wire cuchion surrounds the stud and acts as a movement limiter. Mounting equipment on top of these isolators protects them from damage caused by vibrations.

Spring Isolator VT7002

Suspend sensitive equipment with our spring isolator 7002. An all-metal and light weight isolator mount. This series of isolators have…

Spring Isolator VT4421 available with two different springs (suffix -03 and -06) depending on the load range.

Spring Isolator VT4421

All-metal isolator with steel spring, damping element in 18/8 stainless steel wire and scrolls in aluminium. Excellent for vibration isolation…

Image of Vibratec Spring Package

Spring Packages 1, 2 or 3 rows

Springs in high tensile steel, resilient cushions of 18/8 stainless steel wire mesh, scrolls in aluminium, mounting plates in painted…

Image of Vibratec Spring package 4625-B9

Spring Package VT4625-B

Pre-Compressed Spring Boxes primarily used for vibration isolation of heavy machine foundations and buildings. The VT4625-serie is used where the…

Image of Vibratec Spring Package VT4660-B

Spring Package VT4660-B

Pre-Compressed Spring Boxes primarily used for vibration isolation of heavy machine foundation and buildings. The VT4660-serie is used where the…

Image of Vibratec Spring Isolator AVM. Custom AVM-isolators from Vibratec are used to suspend turbines, power plants and accommodation modules on offshore platforms. They prevent vibrations to cause damage to equipment and the health of the crew.

Spring Package AVM

Our custom-made spring vibration isolators are designed for outdoor offshore and marine installations. The steel structure is often manufactured in…

Image of Vibratec Metal Cushion VT1120-VT1140

Metal Cushion VT1120 – VT1140

All metal resilient element produced of 18/8 steel mesh. The progressive spring rate yields an almost constant natural frequency over…

Image of Vibratec Metal Cushion VT1110

Metal Cushion VT1110, VT1130

All metal resilient element produced of 18/8 steel mesh. The progressive spring rate yields an almost constant natural frequency over…

Image of Vibratec Metal Cushion VT1405

Metal Cushion VT 1405

All-metal resilient element produced of 18/8 steel mesh. The progressive spring rate yields an almost constant natural frequency within a…

Image of Vibratec Spring Isolator VT4423-06 Delta Magni

Spring Isolator VT44XX-DM

Springs with high-class anti-corrosion protection for use in harsh environment, outdoors in marine and offshore applications.

Image of our spring isolator VT41XX used for vibration isolation and shock damping

Spring Isolator VT41XX

A very soft spring isolator with integrated adjustable movement limiters. This isolator has a natural frequency between 5-9 Hz and…

A picture of Vibratecs spring isolator VT42XX used for vibration and shock control on marine engines, fans, compressors etc.

Spring Isolator VT42XX

A very soft spring isolator with integrated adjustable movement limiters. This isolator has a natural frequency between 5-9 Hz and…

Image of Vibratec Spring Isolator VT4090

Spring Isolator VT4090

A very soft isolator with integrated adjustable movement limiters. It has a very low natural frequency of 3.5 – 5…

Image of Vibratec Steel Mount VTCI-2000S-A4

Steel Mount VTCI-2000S-A4

Vibratec Cushion Isolator for use as elastic sliding support. Resilient elements and isolator structure parts are all made of AISI316…

Image of Steel Mount VT-DZ

Metal Mount VT-DZ

An all-metal vibration isolator for a resilient suspension of motors, pumps, generators and exhaust pipes.

Image of Vibratec Steel Mount VT-DZ-S

Metal Mount VT-DZ-S

An all-metal vibration isolator for a resilient suspension of motors, pumps, generators and exhaust pipes

Image of Vibratec Spring Hanger VE-101

Spring Hanger VE-101

Housing in zinc-plated steel, spring in high tensile stainless steel. Guiding bracket in neoprene. Zinc-plated fastening details.

Wall Mount VT-AWS L1 and L2, used for decoupling walls to reduce structure borne noise.

Wall Mount VT-AWS-L

VT-AWS-L (Acoustic Wall Suspension) is used to de-couple inner walls to prevent transmission of vibrations and structure born sound.

Acoustic Wall Mount VT-AWS, used to decouple walls from the main structure and reduce structure borne noise. An EPD certified product.

Wall Mount VT-AWS

VT-AWS (Acoustic Wall Suspension) is used to de-couple inner walls to prevent transmission of vibrations and structure born sound.

The joist hangers are mechanically fixed to the wall and wooden beams are mounted into the hangers.

Joist Hanger VT-JH

Impact sound isolating joist hanger for wood beams. The Joist Hanger VT-JH is used for elastic connections of wooden beams…

An acoustic wall mount VT-WH used to decouple walls from the main structure to reduce unwanted structure borne noise. An EPD-certified product.

Wall Mount VT-WH

Wall mount VT-WH (Wall Hanger) is used to de-couple inner walls to prevent transmission of vibrations and structure born sound.

Acoustic ceiling hanger VT-MCH. Suspends equipment or other installations and reduces vibrations and structure borne noise. An EPD-certified product.

Ceiling Hanger VT-MCH

The VT-MCH Multi Cushion Hanger is designed for both top or side mounting. It could be used together with Vibratec…

Ceiling Hanger VT-RFH

The Ceiling Hanger VT-RFH is a series of ceiling hangers available in 5 different load ranges. Housing and washer in…

This is a close up of the housing and the spring isolator in our VT4523 hanger.

Spring Hanger VT-4523

All-metal hanger with spring made of high tensile steel. For isolation of pipes, fans and cooling units. Scroll in aluminum…

Image of Vibratec Spring Isolator VT4524-0X

Spring Hanger VT4524-0X

All-metal hanger, perfect for vibration isolation of pipes, stabilisation of frames and equipment. This spring hanger has a very low…

Image of Vibratec Spring Isolator VT4524-2X

Spring Hanger VT4524-2X

All-metal hanger, perfect for isolation of pipes, stabilisation of frames and equipment. Mounts with very low natural frequency and accepts…

Image of Vibratec Spring Isolator VT4524-4X

Spring Hanger VT4524-4X

All-metal hanger, perfect for isolation of pipes, stabilisation of frames and equipment. Mounts with very low natural frequency and accepts…

Image of Vibratec Spring Isolator V306

Spring Isolators V303 – V308

Isolation of exhaust systems, especially on ships. Isolation of various pipes (pressurised air or fluids). Protection of fragile equipment during…

Image of Vibratec Spring Isolator V405

Spring Isolators V403 – V406

All metal isolator of the double-action type, designed for loading in tension and compression. Isolation of exhaust systems, especially on…

Image of Vibratec Pipe Clamp VTPC 100. Used for elastic suspension of pipes onboard marine vessels, offshore platforms or industry applications.

Pipe Clamps VTPC 100-900

A very rigid construction that allows quick mounting/dismounting of the pipes. The resilient elements are non-creeping, are unaffected by oils,…

Vibratec Reapor sound absorbing panels for indoor and outdoor use.

Sound Absorber Reapor®

Reapor® is an eco-friendly sound absorber for challenging environments. The panels are hard, lightweight and fibre-free and can be used…

The Vibratec acoustic ceiling connector VT-ACC is designed for easy installation and good performance. The build height of the system is minimal, only 47 mm plus a recommended 3 mm deflection.

Ceiling Hanger VT-ACC

The Vibratec acoustic ceiling connector VT-ACC is designed for easy installation and good performance. The connector/hanger is made of galvanized…

Ceiling System VT-SFC

The VT-SFC Single Frame Ceiling System is designed to optimize the sound isolation of suspended ceilings. The system comprises of…

VT-CBC is an acoustic ceiling system for creating quiet and comfortable environments. It is also EPD certified.

Ceiling System VT-CBC

The Vibratec VT-CBC Ceiling System is an acoustic ceiling designed and optimized for rehearsal rooms, music studios, theaters, cinemas, residential…

Acoustic suspended ceiling system VT-MCH. The mount can be fixed in two different ways; top or side mounted. This is a great feature where space is limited.

Ceiling System VT-MCH

The ceiling system VT-MCH is designed as an acoustic suspended ceiling to mitigate air borne noise and impact sound. The…

View of the components making up the Vibratec's ceiling system VT-MSH. The spring isolator has a natural frequency between 4-5 Hz which greatly reduces vibrations and unwanted noise. This example of a suspended ceiling has three layers of gypsum boards.

Ceiling System VT-MSH

The ceiling system VT-MSH is designed as an acoustic suspended ceiling to mitigate air borne noise and impact sound. The…

Vibratec Anti-Vibration-Pad AVP-220

Anti Vibration Pad – VT-AVP

Vibratecs Anti-Vibration Pad series is an elastomer isolator primarily used for vibration isolation of rotating machinery and other equipment. The…

Vibratec's flexible floor bracket VT-FFB for constructing elastic, floating floors, in markets where timber joists are 45 mm in thickness. This bracket comes in two versions depending on the size of your floor joists.

Flexible Floor Bracket VT-FFB

Vibratec’s Flexible Floor Bracket is a quick and easy way to build an adjustable floating floor. The bracket fits on…

The acoustic floor system VT-BAT 50mm. Elastic Regufoam 570+ pads and two layers of floorboard glued togehter with our damping glue DG-2000 make up this sub-floor. A self-adhesive elastic strip surrounds the floor construction and decouples it from the walls. This greatly reduceses structure borne noise caused by imacts from droppping objects or walking, jumping etc. An EPD-certified product.

Floor System VT-BAT

Vibratec floor system VT-BAT is a quick and easy-to-install system with discrete isolators. The system comprises of 3 meter long…

Picture of Vibratecs Floor System VT-dBlock with 25 mm high isolators

Floor System VT-dBlock

VT-dBlock is an adjustable system for raised floors specially developed for a quick and easy installation and for effective impact…

Image of Vibratec Floor System VT-FLOAT

Floor System VT-FLOAT

A system for heavy floating concrete floors with either elastic pads or steel springs as discrete isolators. VT-FLOAT is used…

Floor System VT-JFS

VT-JFS is a floating floor system from Vibratec. The anti-vibration system raises the floor slab on springs with dampen impact…

REGUFOAM Vibration Isolation

REGUFOAM vibration is an elastic polyurethane foam designed for optimal vibration isolation. It is available in twelve different densities and…

REGUPOL vibration Isolation

The REGUPOL vibration range offers a portfolio of eight product types which can be used in the wide load range…

Image of Vibratec Regupol Sound and Drain 22

REGUPOL Sound & Drain 22

The 15 mm thick impact sound insulation REGUPOL sound and drain 22 has a profiled underside and is ideally suited…

An illustration of our damping glue between två layers of floor boards.

Damping Glue DG-1000

The viscoelastic damping material, DG-1000, is a one component acrylic compound optimised to give a high composite damping in combination…

An illustration of our damping glue between två layers of floor boards.

Damping Glue DG-2000

DG-2000 is a water-based acrylic damping glue optimised for wooden based constrained layer damping applications. A one-component viscoelastic damping glue…

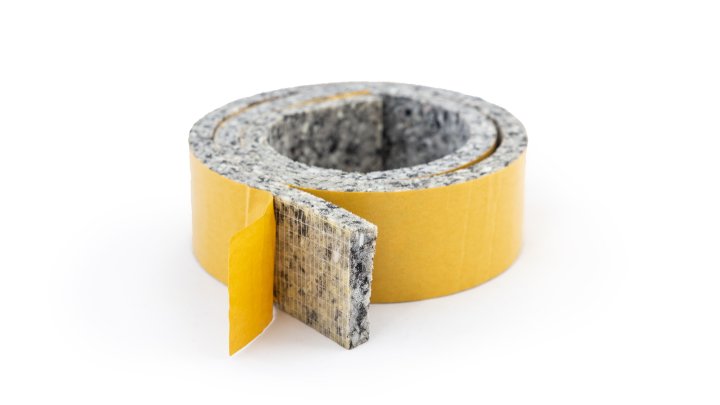

Elastic Strip VT-Strip
